Concrete jacking, also known as slab jacking or mudjacking, is a technique used to lift and level sunken or uneven concrete slabs. This method is highly effective, cost-efficient, and minimally invasive compared to complete concrete replacement. Here’s a detailed look at the concrete jacking process:
Step 1: Site Inspection and Assessment
Objective: Determine the extent of the concrete damage and the underlying causes.
- Initial Consultation: The process begins with a consultation where you describe the issues you’re facing with your concrete surfaces. This might involve sunken driveways, uneven sidewalks, or tilting patios.
- On-Site Inspection: A professional team visits your location to conduct a thorough inspection. They look for visible signs of damage, such as cracks, gaps, and uneven surfaces.
- Subsurface Assessment: Using specialized equipment, the team assesses the condition of the soil beneath the concrete. This step is crucial as unstable or eroded soil is often the cause of sinking slabs.
- Evaluation Report: The inspection results are compiled into a detailed report, which outlines the problems, potential causes, and recommended solutions.
Step 2: Drilling Injection Holes
Objective: Prepare the concrete slab for the injection of lifting material.
- Marking Injection Points: The team marks the locations where holes will be drilled. These points are strategically chosen to ensure even lifting and to minimize damage to the existing concrete.
- Drilling Holes: Small holes, typically 1 to 2 inches in diameter, are drilled through the concrete slab. The number and placement of these holes depend on the size and condition of the slab.
- Cleaning the Holes: After drilling, the holes are cleaned to remove any debris or dust, ensuring a clear path for the lifting material.
Step 3: Injecting the Lifting Material
Objective: Lift and level the concrete slab by injecting material underneath it.
- Preparing the Mixture: The lifting material, which can be a cementitious grout, is prepared. Each material has its benefits, with grout being cost-effective.
- Injection Process: Using specialized pumps, the lifting material is injected into the holes. The material flows beneath the slab, filling voids and compacting the soil.
- Controlled Lifting: As the material expands, it gently lifts the concrete slab back to its original level. The process is carefully monitored to ensure even lifting and prevent cracking.
Step 4: Monitoring the Lift and Leveling
Objective: Ensure the slab is lifted evenly and to the desired height.
- Precision Monitoring: During the injection process, the team uses precision instruments to monitor the lift. This ensures that the slab is raised evenly and to the correct height.
- Adjustments: If necessary, additional material is injected to achieve the perfect level. The goal is to restore the concrete to its original position without causing new damage.
- Final Checks: Once the desired level is reached, the slab is checked for stability and uniformity. The team ensures that all sections of the slab are properly aligned.
Step 5: Sealing the Holes and Finishing Touches
Objective: Complete the process by sealing injection holes and cleaning the site.
- Hole Sealing: The injection holes are filled with a patching material that matches the existing concrete. This helps to restore the slab’s appearance and prevent water infiltration.
- Surface Cleaning: The concrete surface is cleaned to remove any debris or excess lifting material. This leaves the area looking neat and well-maintained.
- Site Inspection: A final inspection is conducted to ensure all work has been completed to the highest standards. The team checks for any remaining issues and addresses them promptly.

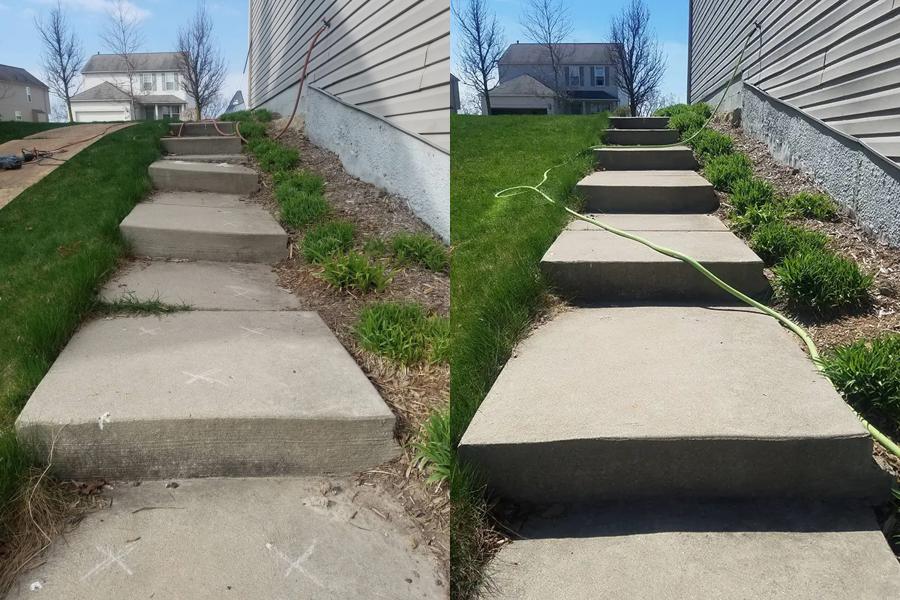

Conclusion: Enjoy the Results
Concrete jacking is a reliable and efficient method for repairing sunken or uneven concrete slabs. By following this detailed step-by-step process, your concrete surfaces will be restored to their original condition, improving safety, functionality, and aesthetics. For professional and expert concrete jacking services, contact [Your Company Name] today and let us help you achieve flawless concrete surfaces.
This service is available throughout Medicine Hat, Redcliff, Brooks, Cypress County, and surrounding areas.
